SA
15
tubular profiles, flush-mounted externally and internally between sash and frame
introduction
design
windows
doors
SA 15
System of profiles with a sheet thickness of 1.5 mm, and a depth of 55 mm for glazing of up to 40 mm, flush-mounted externally and internally between the sash and frame. SA windows and doors are available in four materials – painted galvanized steel, stainless steel 304 and 316, corten steel and brass.

GLAZING BEAD
configureThe small profiles placed in front of the glass to fix it are also design elements of the frame and are produced in the same finishes as the frame

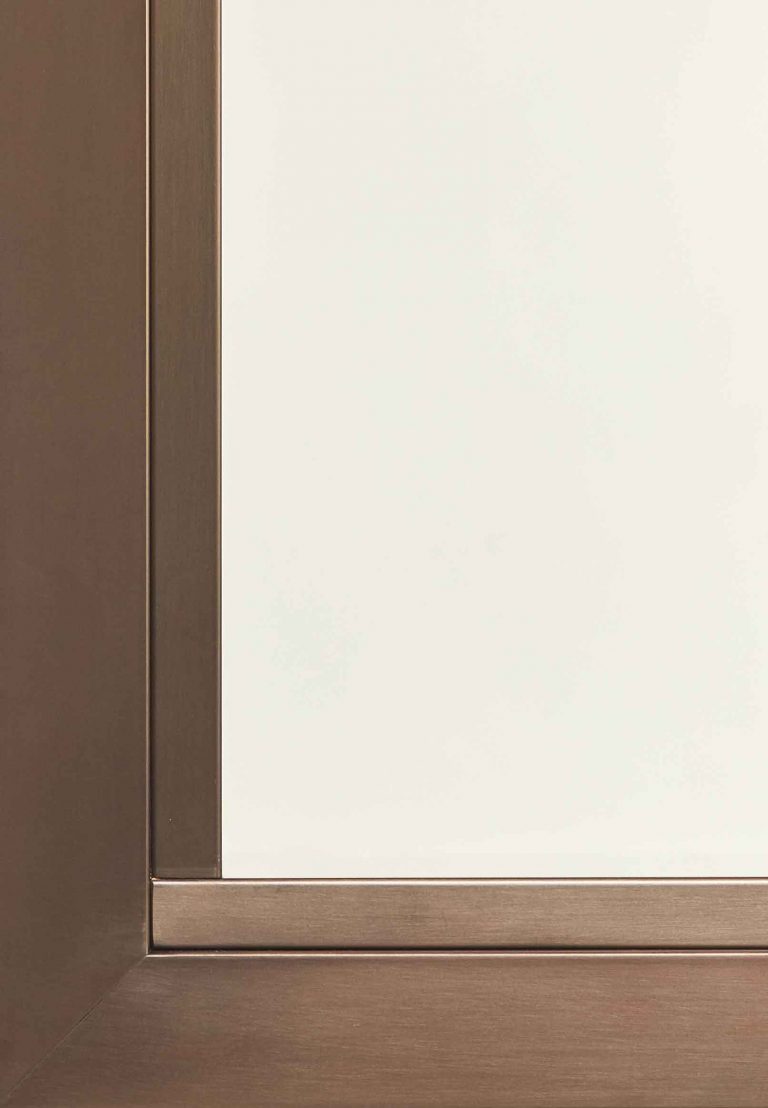

squared

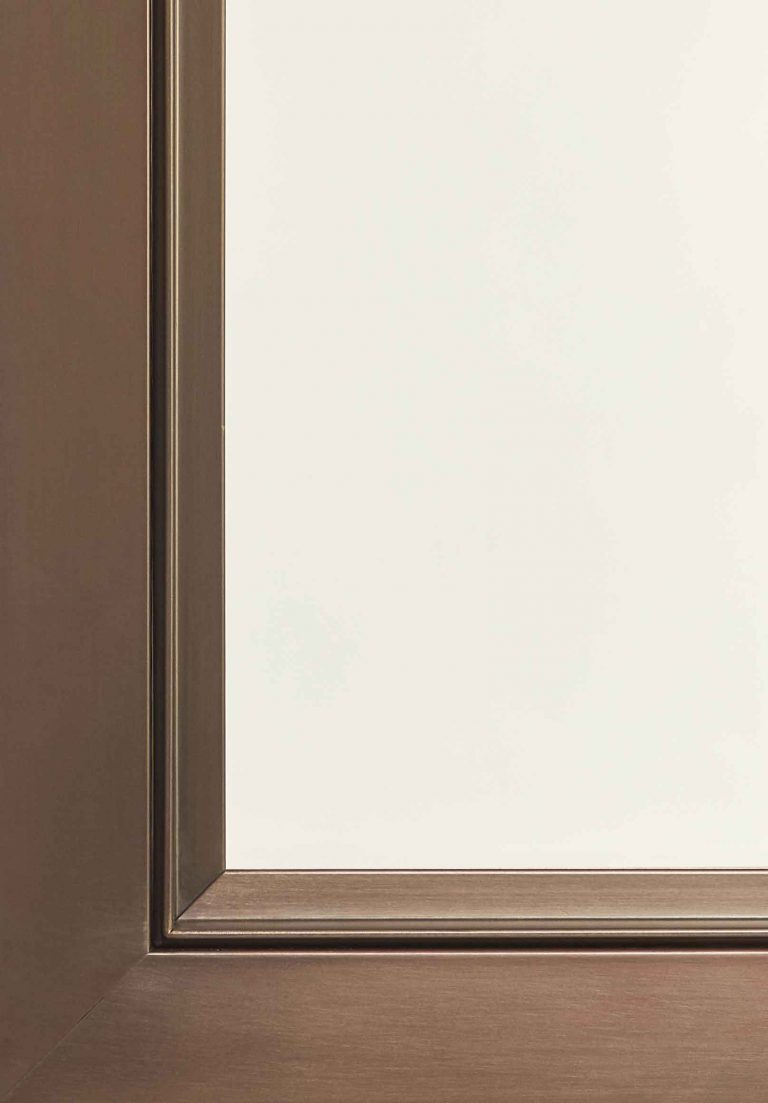

thin

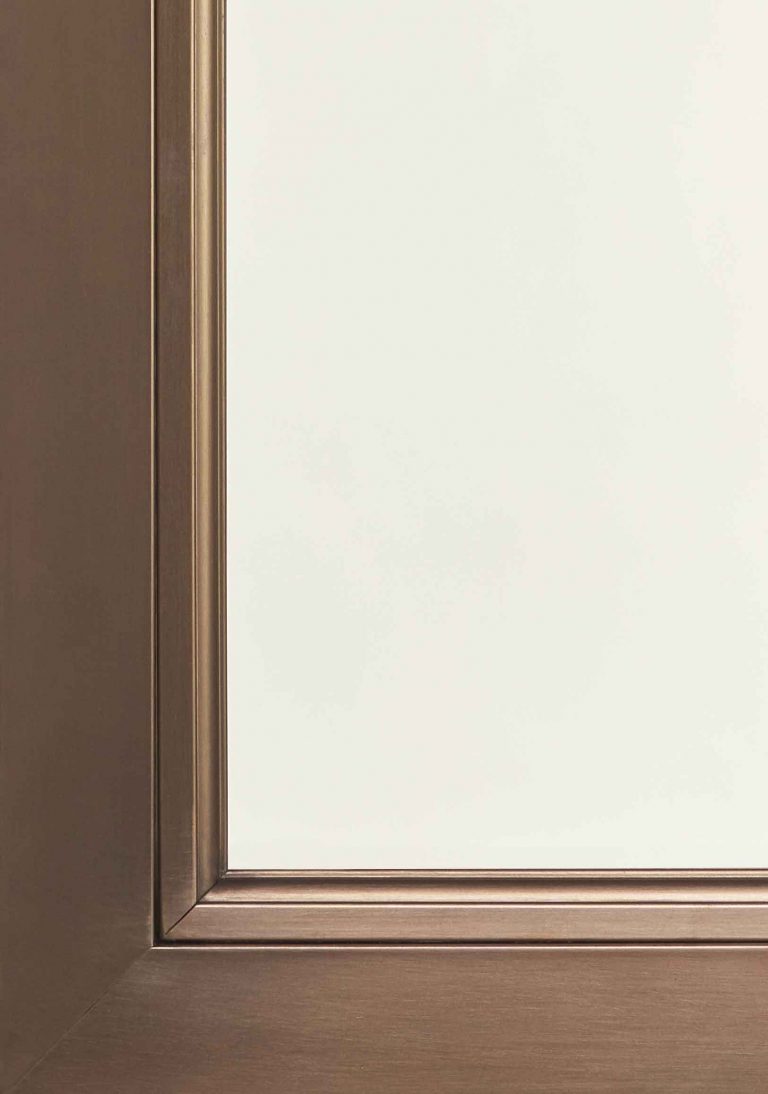

gothic
HINGES
learn moreTo better integrate into the window frame, the hinges are slender, minimal and provided in the same finishes as the frame.
In tilt and turn, the hinges can be concealed


Three-wing hinge
- stainless steel
- corten steel


Concealed only for doors
- galvanized steel
HANDLES
learn moreDiscrete, geometric, minimal and in the same finishes as the frame, the handles integrate perfectly into the frame.

Vitruvio Tronca
- stainless steel
- brass

Vitruvio Quadra
- stainless steel
- corten steel

Vitruvio Tonda
- stainless steel
- brass

Vitruvio Ovale
- stainless steel
- brass
MATERIALS
learn moreSA 15 is available in 4 precious metals

galvanized steel
- varnished

stainless steel
- scotch brite
- burnished

corten steel
- oxidized

brass
- natural
- burnished

WINDOW tilt and turn
EN 14351-1:2016 |
maximum certified performance |
|
---|---|---|
EN 12207 | air permeability | 4 |
EN 12208 | water tightness | E750 |
EN 12210 | wind load resistance | C5 |
EN 717-1 | acoustic performance | 46 dB |
EN 12567-1 | thermal transmittance | 1,93 W/m2K |



DOOR inward opening
EN 14351-1:2016 |
maximum certified performance |
|
---|---|---|
EN 12207 | air permeability | 3 |
EN 12208 | water tightness | 1A |
EN 12210 | wind load resistance | C3 |
EN 717-1 | acoustic performance | 41 dB |
EN 12567-1 | thermal transmittance | 1,85 W/m2K |



DOOR outward opening
EN 14351-1:2016 |
maximum certified performance |
|
---|---|---|
EN 12207 | air permeability | 3 |
EN 12208 | water tightness | 1A |
EN 12210 | wind load resistance | C3 |
