EBE 65
The profiles of the thermal break EBE 65 system have a depth of 65 mm and can hold insulating glazing panels of up to 48 mm. The sash and the frame are rebated internally and coplanar externally.
Performance of the EBE thermal break system has been tested by the best laboratories for European certification in accordance with current EN 14351-1 regulations.

GLAZING BEAD
configureThe small profiles placed in front of the glass to fix it are also design elements of the frame and are produced in the same finishes as the window

squared

thin

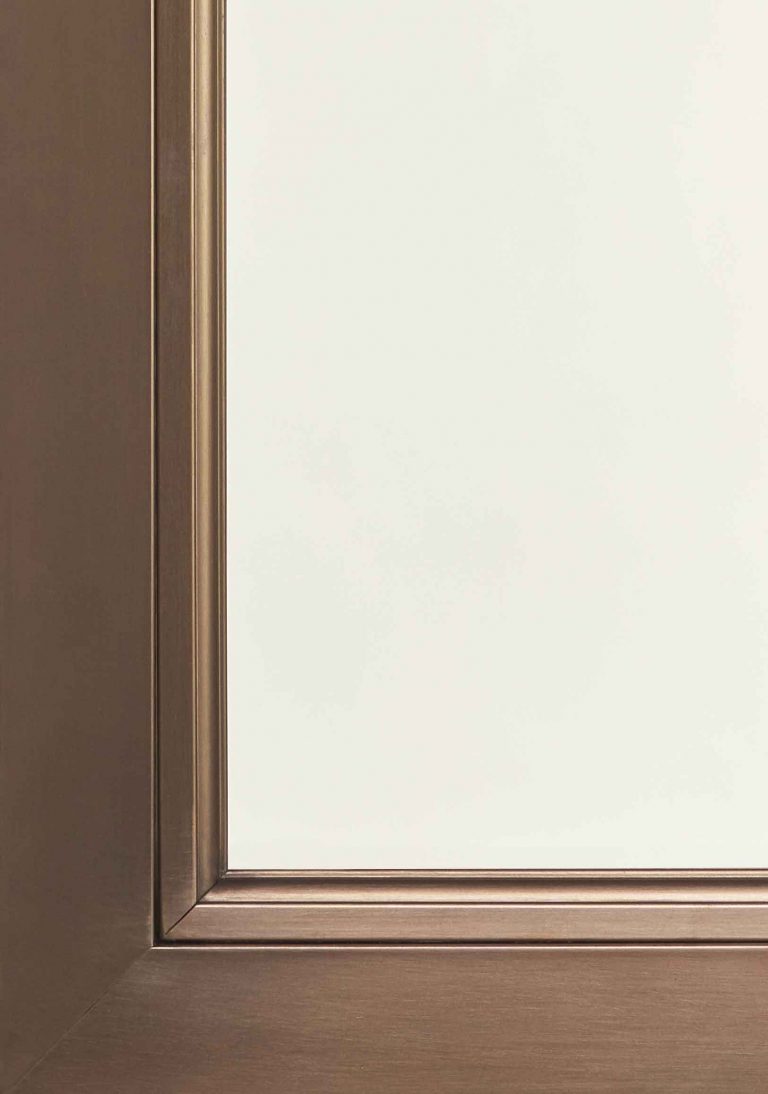

gothic
HINGES
learn moreTo better integrate into the window frame, the hinges are slender, minimal and provided in the same finishes as the frame.
In tilt and turn, the hinges can be concealed


Two-wing hinge
- stainless steel
- corten steel


Three-wing hinge
- stainless steel
- corten steel


Concealed only for doors
- galvanized stee
HANDLES
learn moreDiscrete, geometric, minimal and in the same finishes as the frame, the handles integrate perfectly into the frame

Vitruvio Tronca
- stainless steel
- brass

Vitruvio Quadra
- stainless steel
- corten steel

Vitruvio Tonda
- stainless steel
- brass

Vitruvio Ovale
- stainless steel
- brass
MATERIALS
learn moreEBE 65 is also available in 4 precious metals in the Bi-material combination, combining two different materials between the interior and the exterior

galvanized steel
- varnished

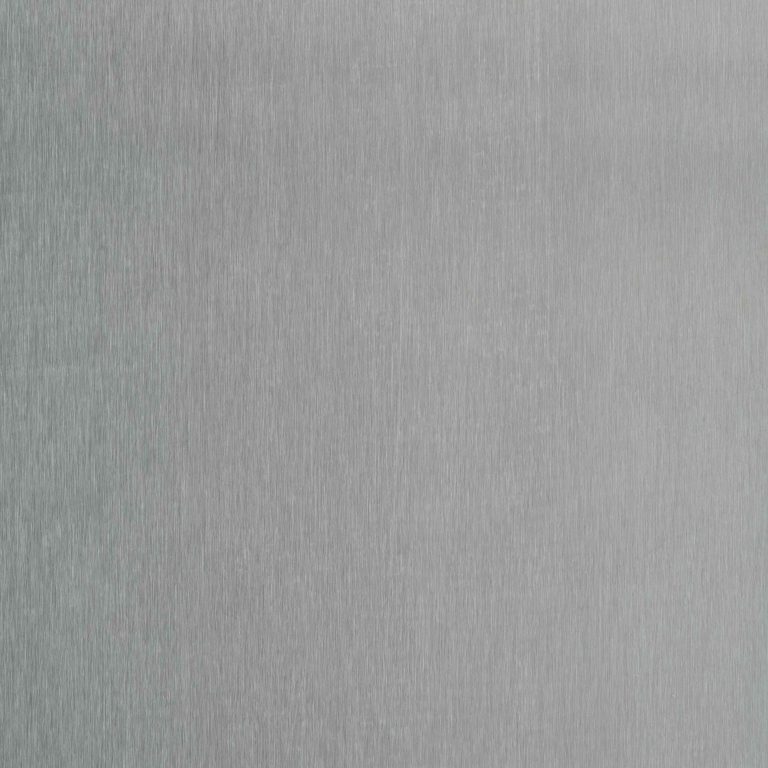

stainless steel
- scotch brite
- burnished

corten steel
- oxidized

brass
- natural
- burnished

WINDOW tilt and turn
EN 14351-1:2016 |
maximum certified performance |
|
---|---|---|
EN 12207 | air permeability | 4 |
EN 12208 | water tightness | 9A |
EN 12210 | wind load resistance | C5 |
EN 717-1 | acoustic performance | 47 dB |
EN 12567-1 | thermal transmittance | 1,47 W/m2K |
EN 1627 | burglar resistance | RC 3 |



DOOR inward opening
EN 14351-1:2016 |
maximum certified performance |
|
---|---|---|
EN 12207 | air permeability | 3 |
EN 12208 | water tightness | 2A |
EN 12210 | wind load resistance | C4 |
EN 717-1 | acoustic performance | 42 dB |
EN 12567-1 | thermal transmittance | 1,55 W/m2K |
EN 1627 | burglar resistance | RC 3 |



DOOR outward opening
EN 14351-1:2016 |
maximum certified performance |
|
---|---|---|
EN 12207 | air permeability | 3 |
EN 12208 | water tightness | 2A |
EN 12210 | wind load resistance | C4 |
EN 1627 | burglar resistance | RC 3 |
